Output Range:	2.4mm to 20mm Btu/hr
Efficiency:	Up to 88% LHV
Efficiency w/ preheater:	Boost Efficiency up to 92% LHV
Fuels:	Natural Gas, Producer Gas, #2 Oil
Controls:	Available to satisfy the requirements of NFPA, UL, FM, U.S. Coast Guard, ABS and API

Downloads

Alliance Heater Brochure

Installation & Operation Manual

Cutaway (CLICK TO ENLARGE)

Markets

Liquid Terminal Facilities Heated tank storage of asphalt, bunker oil and crude oil collection tanks. Industrial & Custom Applications Chemical plants, oil recycling facilities, hot & warm mix asphalt, wood processing plants, acid baths for stamping facilities, and more...

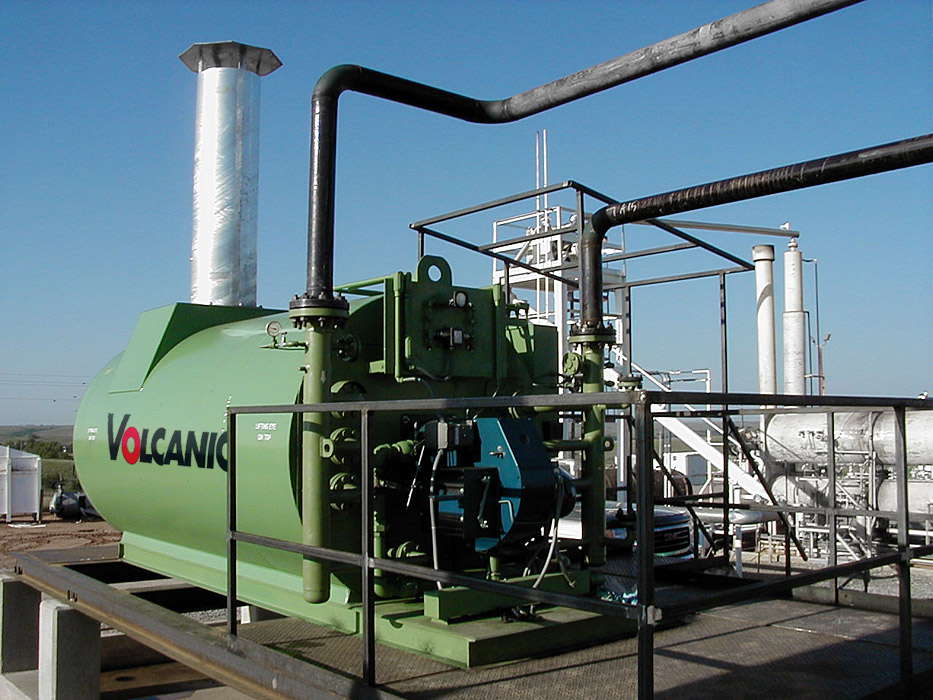

The three-pass horizontal coil thermal fluid heater provides an efficiency improvement of 5 to 7% over 2-pass heaters. The heat transfer coils are designed to have high fluid velocities and ample surface area, resulting in low film temperatures and low heat fluxes, which extend fluid life. The three pass design also comes in a smaller overall footprint, well suited for placement in tight spaces with low overhead clearance.

The heaters are available from 2,400,000 BTU/hr to 20,000,000 BTU/hr output and maximum operating temperatures up to 650°F (340°C) These heaters are designed, built, and tested in accordance with ASME Code Section I or ASME Code Section VIII, Div. 1. We offer Low NOx natural gas burners for 30 ppm NOx emissions compliance as a standard option.
