Output Range:	0.5mm to 40mm Btu/hr
Efficiency:	Up to 80% LHV
Fuels:	Natural Gas, Producer Gas, #2 thru #6 Oil
Controls:	Available To satisfy the requirements of NFPA, UL, FM, U.S. Coast Guard, ABS and API U.S. Coast Guard, ABS and API

Downloads

Hopkins Heater Brochure

Installation & Operation Manual

Cutaway (CLICK TO ENLARGE)

Markets

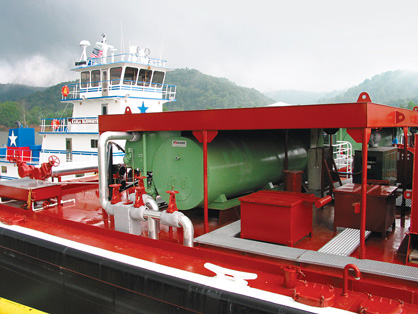

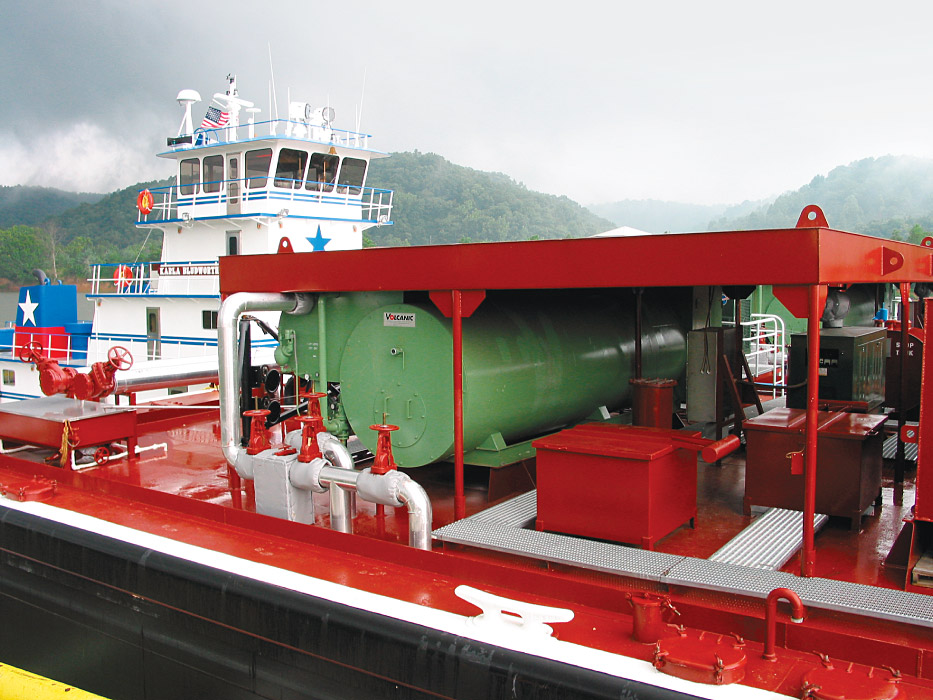

Liquid Terminal Facilities Heated tank storage of asphalt, bunker oil and crude oil collection tanks. Inland River Barges Inland barges used to heat cargo such as asphalt, bunker oil, crude oil, sulfur, and supersaturated solutions of salts. Ocean-Going Vessels Ocean-going barges used to heat cargo such as asphalt, bunker oil, crude oil, sulfur, and supersaturated solutions of salts. Industrial & Custom Applications Chemical plants, oil recycling facilities, hot & warm mix asphalt, wood processing plants, acid baths for stamping facilities, and more...

This Volcanic Horizontal Coil design provides a 2-pass design that Volcanic began to manufacture in 1912. The thermal fluid coil is designed for ruggedness and long life. It utilizes a large radiant chamber and ample heating surface, lowering heat flux rates, improving thermal fluid life by reducing oxidation. This heater is available from 500,000 BTU/hr to 40,000,000 BTU/hr output and maximum operating temperatures up to 650°F (340°C).

This heater is designed, built and tested in accordance with ASME Code Section I or ASME Code Section VIII, Div. 1. We offer Low NOx natural gas burners for 30 ppm NOx emissions compliance as a standard option.
